This ultraviolet (UV) radiation and oxidation technology uses UV radiation, ozone, and hydrogen peroxide to destroy toxic organic compounds, particularly chlorinated hydrocarbons, in water. The technology oxidizes compounds that are toxic or refractory (resistant to biological oxidation) to parts per million (ppm) or parts per billion (ppb) levels.

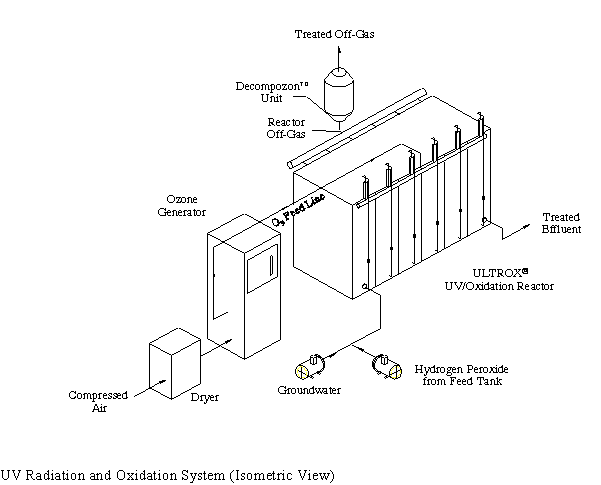

The UV radiation and oxidation system consists of the UV-oxidation reactor, an air compressor and ozone generator module, and a hydrogen peroxide feed system (see figure below). The system is skid-mounted and portable, and permits on-site treatment of a wide variety of liquid wastes. Reactor size is determined by the expected wastewater flow rate and the necessary hydraulic retention time needed to treat the contaminated water. The approximate UV intensity, and ozone and hydrogen peroxide doses, are determined from pilot-scale studies.
Reactor influent is simultaneously exposed to UV radiation, ozone, and hydrogen peroxide to oxidize the organic compounds. Off-gas from the reactor passes through a catalytic ozone destruction Decompozon™ unit, which reduces ozone levels before air venting. The Decompozon™ unit also destroys volatile organic compounds (VOC) stripped off in the reactor. Effluent from the reactor is tested and analyzed before disposal.
The UV radiation and oxidation system treats contaminated groundwater, industrial wastewaters, and leachates containing halogenated solvents, phenol, pentachlorophenol, pesticides, polychlorinated biphenyls, explosives, benzene, toluene, ethylbenzene, xylene, methyl tertiary butyl ether, and other organic compounds. The system also treats low-level total organic carbon and reduces chemical oxygen demand and biological oxygen demand.
This technology was accepted into the SITE Demonstration Program in 1989. A field-scale demonstration of the system was completed in March 1989 at the Lorentz Barrel and Drum Company site in San Jose, California. The testing program was designed to evaluate system performance while varying five operating parameters: (1) influent pH, (2) retention time, (3) ozone dose, (4) hydrogen peroxide dose, and (5) UV radiation intensity. The Demonstration Bulletin (EPA/540/M5-89/012), Technology Demonstration Summary (EPA/540/S5-89/012), Applications Analysis Report (EPA/540/A5-89/012), and Technology Evaluation Report (EPA/540/5-89/012) are available from EPA.
The technology is fully commercial, with over 30 systems installed. Units with flow rates ranging from 5 gallons per minute (gpm) to 1,050 gpm are in use at various industries and site remediations, including aerospace, U.S. Department of Energy, U.S. Department of Defense, petroleum, pharmaceutical, automotive, woodtreating, and municipal facilities. UV radiation and oxidation technology has been included in records of decision for several Superfund sites where groundwater pump-and-treat remediation methods will be used.
Contaminated groundwater treated by the system during the SITE demonstration met regulatory standards at the appropriate parameter levels. Out of 44 VOCs in the wastewater, trichloroethene, 1,1-dichloroethane, and 1,1,1-trichloroethane were chosen as indicator parameters. All three are relatively refractory to conventional oxidation.
The Decompozon™ unit reduced ozone to less than 0.1 ppm, with efficiencies greater than 99.99 percent. VOCs present in the air within the treatment system were not detected after passing through the Decompozon™ unit. The system produced no harmful air emissions. Total organic carbon removal was low, implying partial oxidation of organics without complete conversion to carbon dioxide and water.
EPA PROJECT MANAGER:
Norma Lewis
U.S. EPA
National Risk Management Research Laboratory
26 West Martin Luther King Drive
Cincinnati, OH 45268
513-569-7665
Fax: 513-569-7787
TECHNOLOGY DEVELOPER CONTACT:
William Himebaugh
U.S. Filter/Zimpro, Inc.
7755 Center Avenue, Suite 1120
Huntington Beach, CA 92647
714-545-5557
Fax: 714-557-5396
